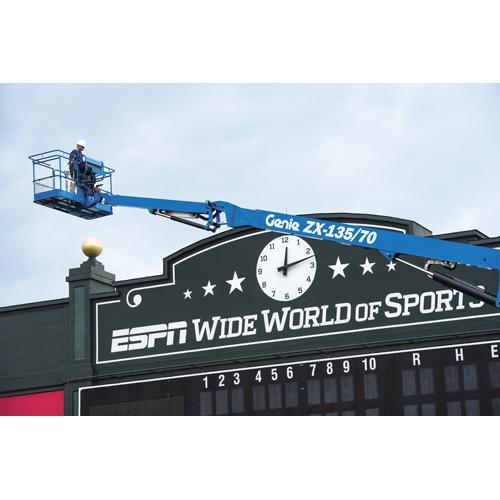

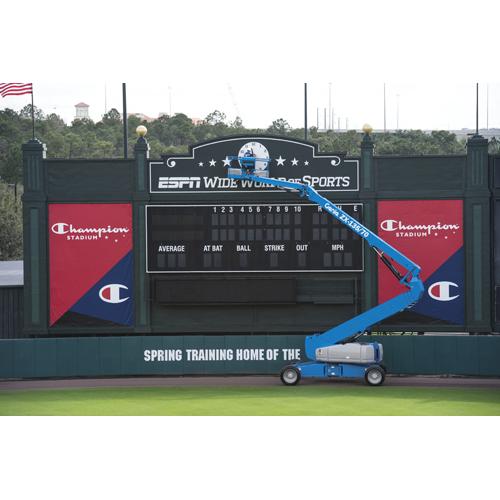

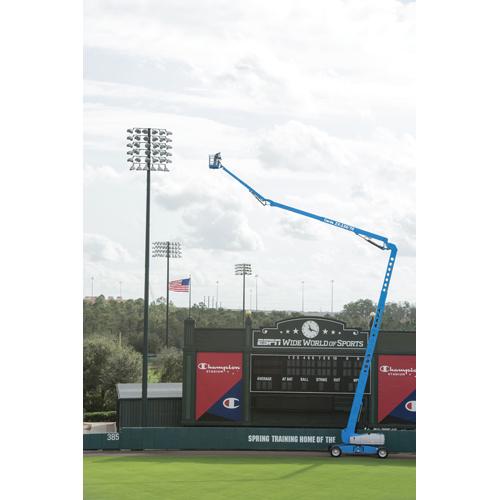

ZX™-135/70 Genie

Working Height

141 ft (43.15 m)

Horizontal Reach

69 ft 9 in (21.26 m)

Up Over Clearance

75 ft 6 in (23.01 m)

Overview

  • New X-design drive chassis extends and retracts to provide both stability on the job and a narrow profile for transport
  • Telescoping Jib-Extend™ jib extends from 12 to 20 ft (3.66 to 6.10 m) and provides a 110? vertical range of motion
  • 360? continuous rotation turntable and 160?platform rotation for fast, easy positioning
  • Four-wheel drive with full-time positive traction handles rough ground conditions to enhance the smoothness of the ride
  • Four-wheel steer with front-wheel, rear-wheel, crab- and coordinated- steer options available to provide additional maneuverability
  • Full-time positive traction 4WD and four wheel brakes
  • The ALC 1000 electronic control system provides menu-based adjustments for machine and component calibration as well as on-screen multi-language system diagnostics
