Z™-60/37 DC & FE Genie

Working Height

65 ft 7 in (20 m)

Horizontal Reach

36 ft 7 in (11.15 m)

Up Over Clearance

24 ft 3 in (7.39 m)

Overview
  • Articulating boom featuring a working height of 65 ft 7 in (20 m) and a horizontal reach of 36 ft 7 in (11.15 m)

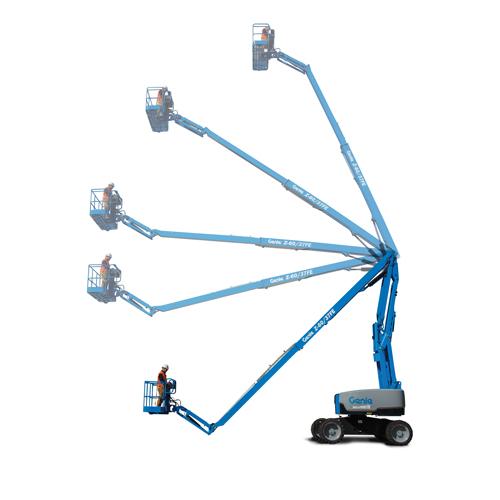

  • The 5 ft (1.52 m) jib features a 135 degree range of motion to accurately position workers
  • The Genie FastMast™ boom system allows operators to descend and retrieve materials and quickly return to working height
  • 4-wheel drive and full-time active oscillating axles provide traction for gradeability up to 45%
  • The new boom lift offers 23 in tail swing-riser up
  • The dual parallelogram lift linkage allows precise positioning of the platform for improved accuracy
  • The proportional control system allows for quick, precise access to work areas for increased productivity
  • A swing out engine tray allows for easy access to either side of the engine assembly to quickly service the starter, exhaust or filters
  • Easy to transport at a compact length of 20 ft and 8 in (6.3 m) when stowed
  • All of these features are available on the Z™-60/37DC that weighs only 16,600 lbs (7,530 kg) or the Z™-60/37FE that weighs only 17,100 lbs (7,756 kg)
  • Recharges overnight by 120v or 240v plugin
  • Z™-60/37FE recharges to 80% in 4 hours with onboard generator
  • All-terrain tires (non marking tires standard on the DC model)
